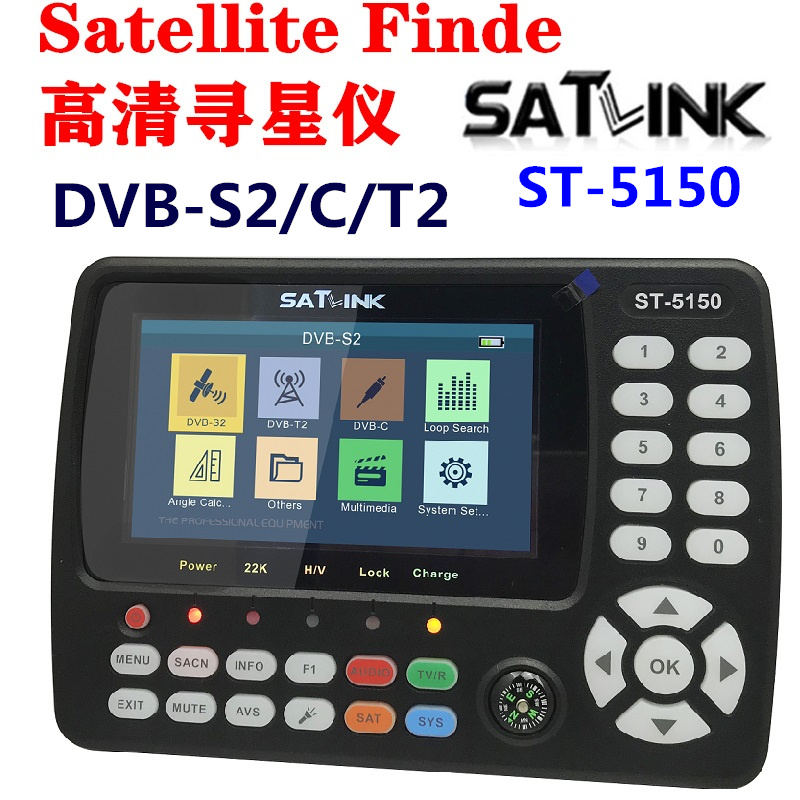

ST-5150 is a DVB-S/S2/T/T2/C and MPEG-2/4 H.264/H.265(8 Bit) compliant handheld
combo meter. With its compact size, light weight, intuitive user’s interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service, attenna signal and cable signal to residential homes or multi-dwelling units.

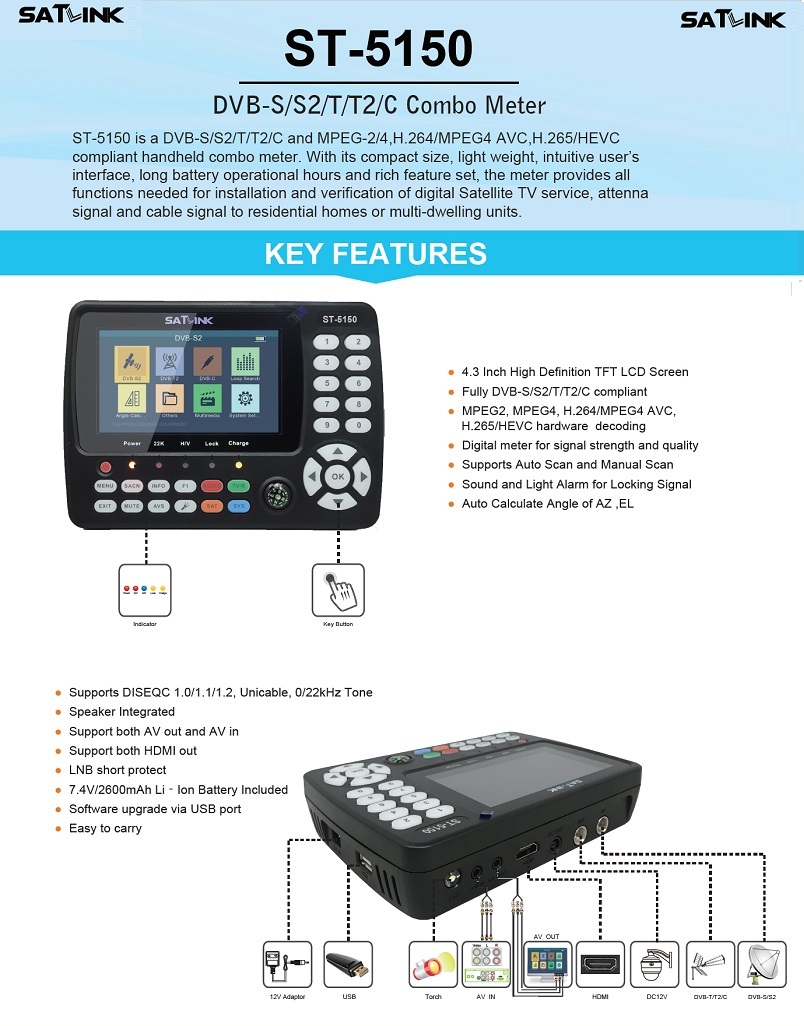

Feature
4.3 Inch High Definition TFT LCD Screen
Fully DVB-S/S2/T/T2/C compliant
MPEG2, MPEG4, H.264/MPEG4 AVC,H.265(8 Bit)/HEVC hardware decoding
Digital meter for signal strength and quality
Supports Auto Scan and Manual Scan
Sound and Light Alarm for Locking Signal
Auto Calculate Angle of AZ ,EL
Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
Speaker Integrated
Support both AV out and AV in
Support HDMI out
LNB short protect
7.4V/2600mAh Li‐Ion Battery Included
Software upgrade via USB port
Easy to carry

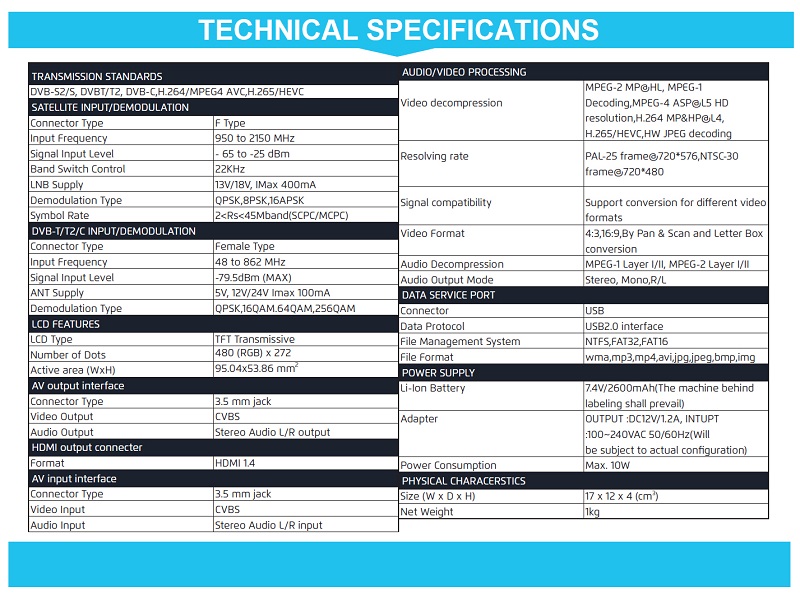

SATELLITE INPUT/DEMODULATION
Connector Type:F Type
Input Frequency:950 to 2150 MHz
Signal Input Level:- 65 to -25 dBm
Band Switch Control:22KHz
LNB Supply:13V/18V, IMax 400mA
Demodulation Type:QPSK,8PSK,16APSK
Symbol Rate:2<Rs<45Mband(SCPC/MCPC)
DVB-T/T2/C INPUT/DEMODULATION
Connector Type:Female Type
Input Frequency:48 to 862 MHz
Signal Input Level:-79.5dBm (MAX)
ANT Supply:5V, 12V/24V Imax 100mA
Demodulation Type:QPSK,16QAM.64QAM,256QAM
LCD FEATURES
LCD Type:TFT Transmissive
Number of Dots:480 (RGB) x 272
Active area (WxH):95.04x53.86 mm 2
AV input/output interface
Connector Type:3.5 mm jack
Video Output:CVBS
Audio Output:Stereo Audio L/R output
AUDIO/VIDEO PROCESSING
Video decompression:MPEG-2 MP@HL, MPEG-1 Decoding,MPEG‐4 ASP@L5 HD resolution,H.264 MP&HP@L4,H.265/HEVC,HW JPEG decoding
Resolving rate:PAL-25 frame@720*576,NTSC-30 frame@720*480
Signal compatibility:Support conversion for diferent video formats
Video Format:4:3,16:9,By Pan & Scan and Letter Box conversion
Audio Decompression MPEG-1 Layer I/II, MPEG-2 Layer I/II
Audio Output Mode:Stereo, Mono,R/L

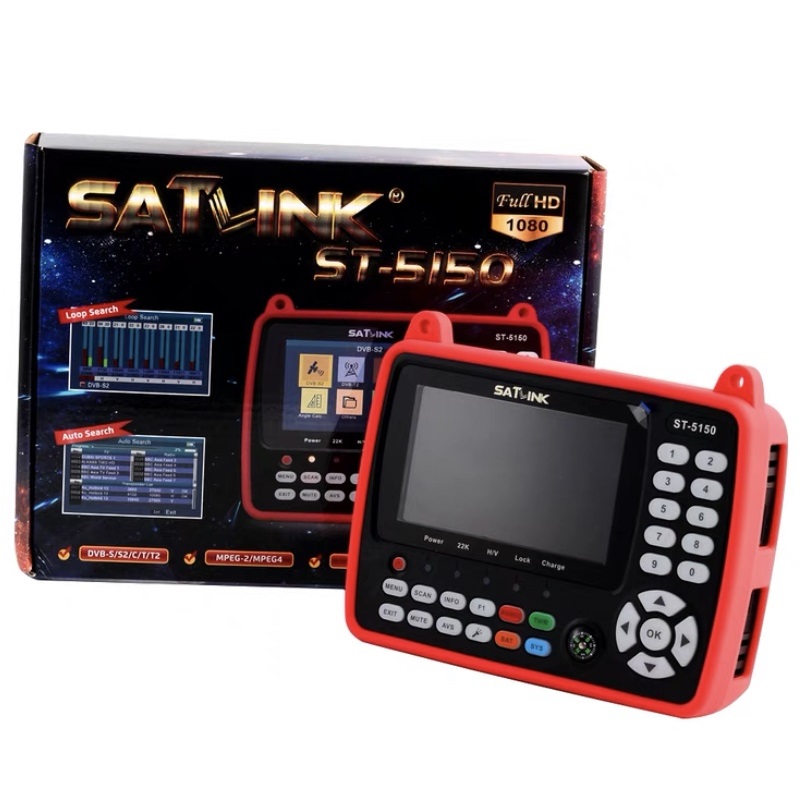

Package:
Digital Satellite Meter
User’s manual
AV cable
Power adaptor
