DVB-S/S2 and MPEG-2/4 H.265(8 Bit) compliant handheld satellite finder.With it’s compact size,light weight,intuitive user’s interface,long battery operational
hours and rich feature set,the finder provides all functions needed for installation and verification of digital Satellite TV service to residential homes or multi-dwelling units.
Interface:
3.5 Inch High Definition TFT LCD Screen (720*576,720*480)
MPEG-2/H.265(8 Bit) Hardware Decoding
About 4 hours Battery Operation Time
Auto angle calculation of AZ.EL
Diseqc 1.1/1.1,1.2 usala and 22Khz Tone
Signal lock with panel led and sound indicators
Signal strength BER MER,S/N,Power Measurmeet
Auto,Blind,Manual and NIT Scan mode
LNB Short Protection
Software Upgrade and File Transfer via USB
Specifications
Transmission standards:DVB-S/S2, MPEG-2,MPEG-4, H.265(8 Bit)
Connector Type:F Type
Input Frequency:950 to 2150 MHz
Signal Input Level:- 65 to -25 dBm
LNB Supply:13V/18V, IMax 400mA
Band Switch Control:22KHz
Demodulation Type:QPSK,8PSK,16APSK,32APSK
Symbol Rate:2<Rs<45Mband(SCPC/MCPC)
LCD Type:TFT Transmissive
Number of Dots:320 x 240 (RGB)
Active area (WxH):70.02x52.58 mm2

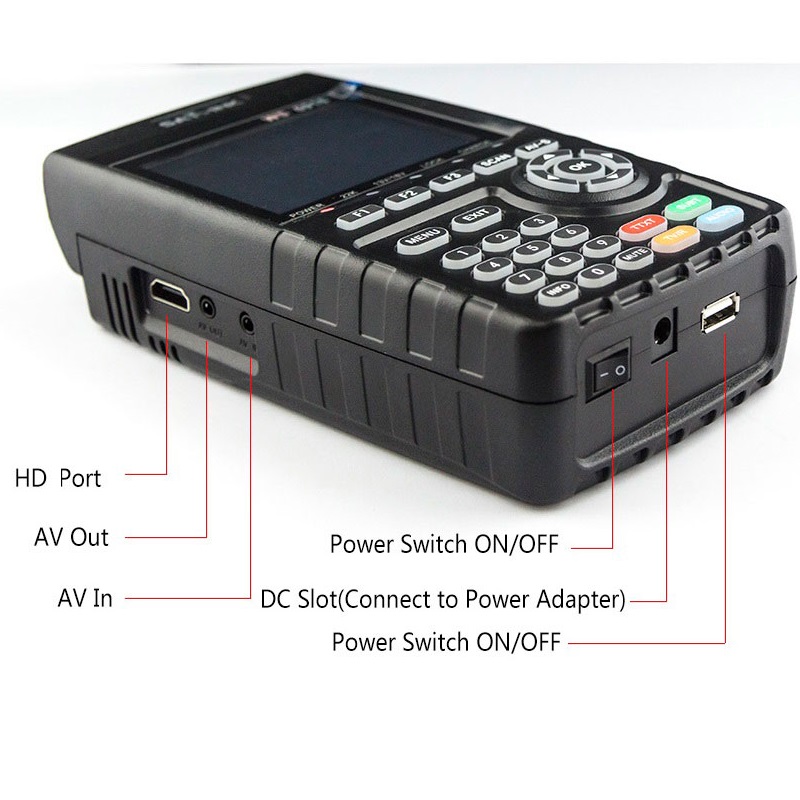

AV output/input interface:
Connector Typ:3.5 mm jack
Video Output:CVBS
Audio Output:Stereo Audio L/R output
DATA SERVICE PORT
Connector:USB
Data Protocol:USB2.0 interface
File Management System:NTFS,FAT32,FAT16
File Format:wma,mp3,mp4,avi,jpg,jpeg,bmp,img

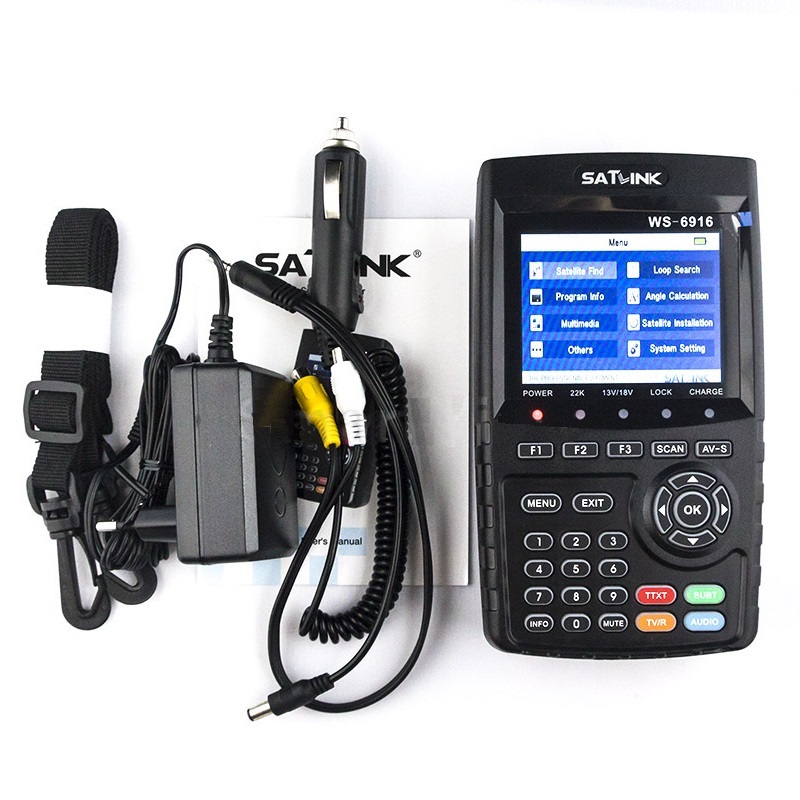

Package:
6916 Digital Satellite Meter
AV cable
Power Adaptor
Car Charger Cable
