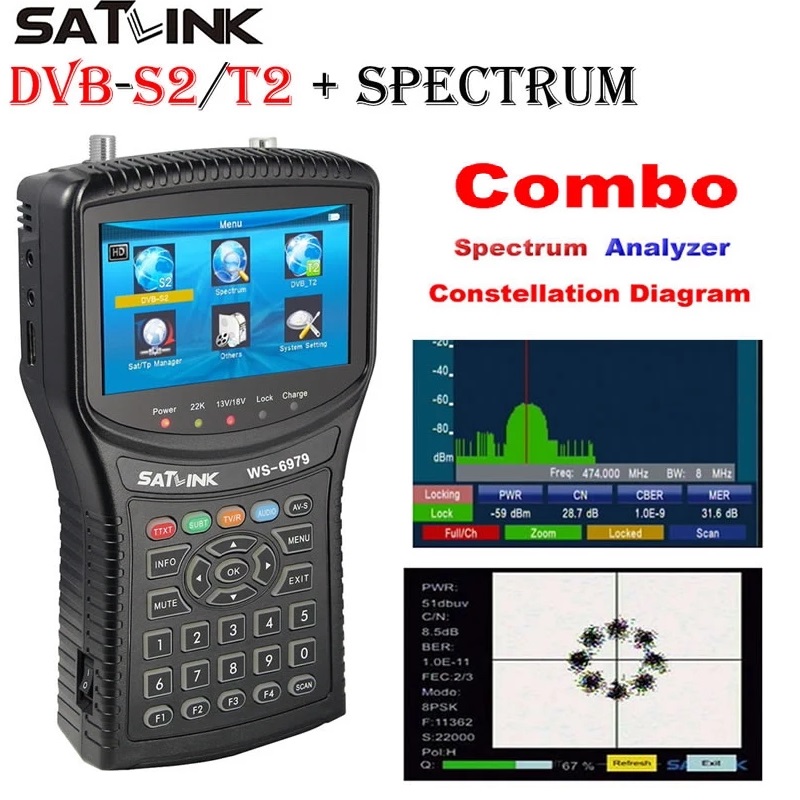

Satlink WS-6979 sat finder DVB-S2&DVB-T2 MPEG4HD COMBO + Spectrum Satellite Meter Finder ws-6950hd sat finder ws6979 meter
4.3 Inch High Definition TFT LCD Screen
Fully DVB-S/S2/T/T2, MPEG-2/MPEG4 compliant
MPEG-2/H.264 Hardware decoding
Digital meter for signal strength and quality
Constellation analyzer
Spectrum analyzer
Supports scan of Auto, Blind, Manual or NIT
Sound and Light Alarm for Locking Signal
Auto Calculate Angle of AZ ,EL
Supports DISEQC 1.0/1.1/1.2 ,0/22khz Tone
Speaker Integrated
Support both AV out and AV in
LNB short protect
7.4V/3000mAh Li-Ion Battery Included
Software upgrade via USB port
Easy to carry

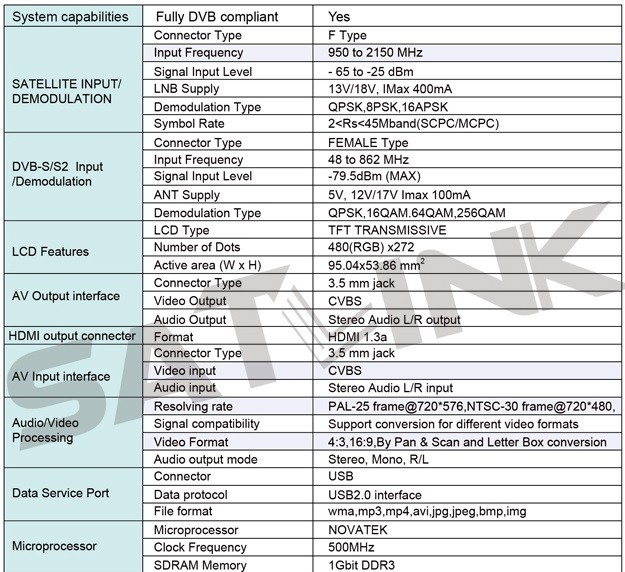

-TRANSMISSION STANDARDS
-DVB-S2/S,DVB-T/T2
-SATELLITE INPUT/DEMODULATION
-Connector Type F Type
-Input Frequency 950 to 2150 MHz
-Signal Input Level-65 to -25 dBm
-Band Switch Control 22KHz
-LNB Supply 13V/18V, IMax 400mA
-Demodulation Type QPSK,8PSK,16APSK
-Symbol Rate 2<Rs<45Mband(SCPC/MCPC)
-DVB-T/T2 INPUT/DEMODULATION
-Connector Type FEMALE Type
-Input Frequency 48 to 862 MHz
-Signal Input Level -79.5dBm (MAX)
-ANT Supply 5V,12V/17V Imax 100mA
-Demodulation Type QPSK,16QAM.64QAM,256QAM
-LCD FEATURES
-LCD Type TFT TRANSMISSIVE
-Number of Dots 480(RGB) x272
-Active area (WxH) 95.04x53.86 mm2
-AV output interface
-Connector Type 3.5 mm jack
-Video Output CVBS,
-Audio output Stereo Audio L/R output
-HDIM output connecter
-Format HDIM 1.3a
-AV input interface
-Connector Type 3.5 mm jack
-Video input CVBS,
-Audio input Stereo Audio L/R input
-AUDIO/VIDEO PROCESSING
-Video decompression MPEG-2 MP@HL, MPEG-1 Decoding,MPEG-4 ASP@L5 HD resolution,H.264-MP&HP@L4,HW JPEG decoding
-Resolving rate PAL-25 frame@720*576,NTSC-30 frame@720*480,
-Signal compatibility Support conversion for different video formats
-Video Format 4:3,16:9,By Pan & Scan and Letter Box conversion
-Audio decompression MPEG-1 Layer I/II ,MPEG-2 Layer I/II,
-Audio output mode Stereo, Mono,R/L
-DATA SERVICE PORT
-Connector USB
-Data protocol USB2.0 interface
-File management system NTFS,FAT32,FAT16
-file format wma,mp3,mp4,avi,jpg,jpeg,bmp,img
-MICROPROCESSOR
-Microprocessor NOVATEK
-Clock Frequency 500MHz
-SDRAM Memory 1Gbit DDR3
-Power SUPPLY
-Li-Ion Battery7.4V/3000mAh(The machine behind labeling shall prevail)
-Adapter OUTPUT:DC12V/1.5A, INTUPT :100-240VAC 50/60Hz(Will be subject to actual configuration)
-Power consumption Max. 10W
-PHYSICAL CHARACERSTICS
-Size (W x D x H) 9.5x15.5x4.5(cm3)
-Net Weight 2kg
1 x Digital Satellite Meter
1 x User's manual
1 x AV cable
1 x Car charger cable
1 x Power Adaptor
1 x DC 12V connect line
