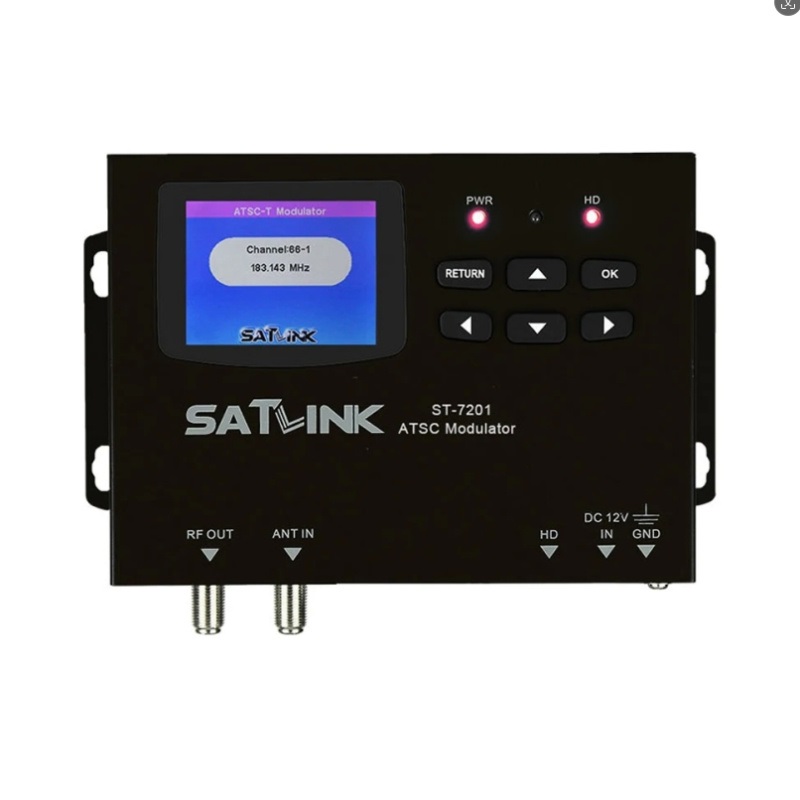

Satlink ST-7201 ATSC-T/ATSC-C HD Modulator
This product is suitable for Korea, USA, Canada, Mexico, South Korea, Costa Rica, Ecuador.
FEATURES
• High level of integration, high-performance, Full-featured,
integrated design
• Single input modulator that converts HD source to a
ATSC-T/ATSC-C channel
• Standard COFDM modulation and MPEG-2 encoding
• Multiple video format compatibility including 576i(PAL) /
480i(NTSC) / 720P / 1080P
• Frequency range: 50~860MHz
• Continuously adjustable RF signal output level range from
69dBuV to 100dBuV, step 1dBuV
• Support modifying parameters via LAN port
• 2.4-inch color LCD display
• Small size and light weight
• User friendly setup and control
• Compact and wall mountable

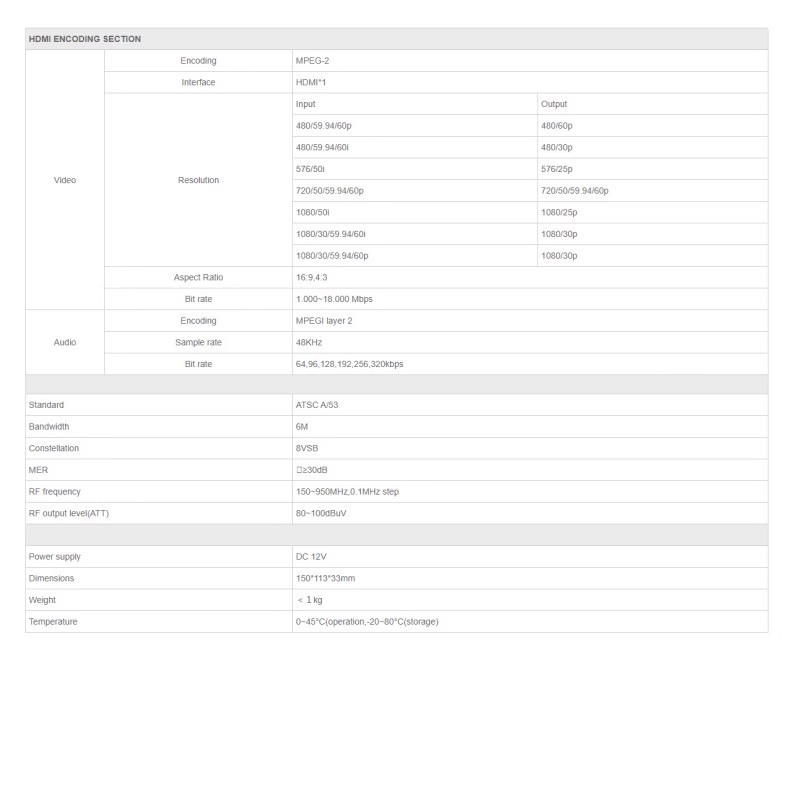

TECHNICAL SPECIFICATION
Modulator
Standard :ATSC-T/ATSC-C
Constellation :8-VSB (ATSC-T mode)
QAM-64/QAM-256 (ATSC-C mode)
MER :35 dB
Frequency Range :50 ~ 860 MHz
Output Level :69 ~ 100 dBuV
Output Impedance :75Ω
HD Input
Compression :MPEG-2 - bitrate 5-15 Mb/s
Video Resolution :1920*1080_60P, 1920*1080_50P;
1920*1080_60i, 1920*1080_50i;
1280*720_60p, 1280*720_50P
Connector :HD
Video Output
Video Resolution :1920*1080_30P, 1920*1080_25P;
1920*1080_30i, 1920*1080_25i;
1280*720_30p, 1280*720_25P
General
Power Source :DC 12V / 1.5A
Operating Temperature :0 ~ +45°C
Dimensions :155mm(L) × 114mm(W) × 33mm(H)
Weight :0.34Kg
