SATLINK ST-6701 HDMI ISDB-T RF Modulator 1 Route MPEG1/4 Satlink ISDB T RF Modulator ST6701 H.264 AVC encoder for Brazil Japan

ST-6701 ISDB-T modulator is developed to adapt JapanBrazil.Arentina and other
South American country’s terrestrial digital television.It's mainly applied in home
entertainmentsurveillance control.hotel Diaital Sianage. shops etc.And it is
integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video
signals into ISDB-T RF out.

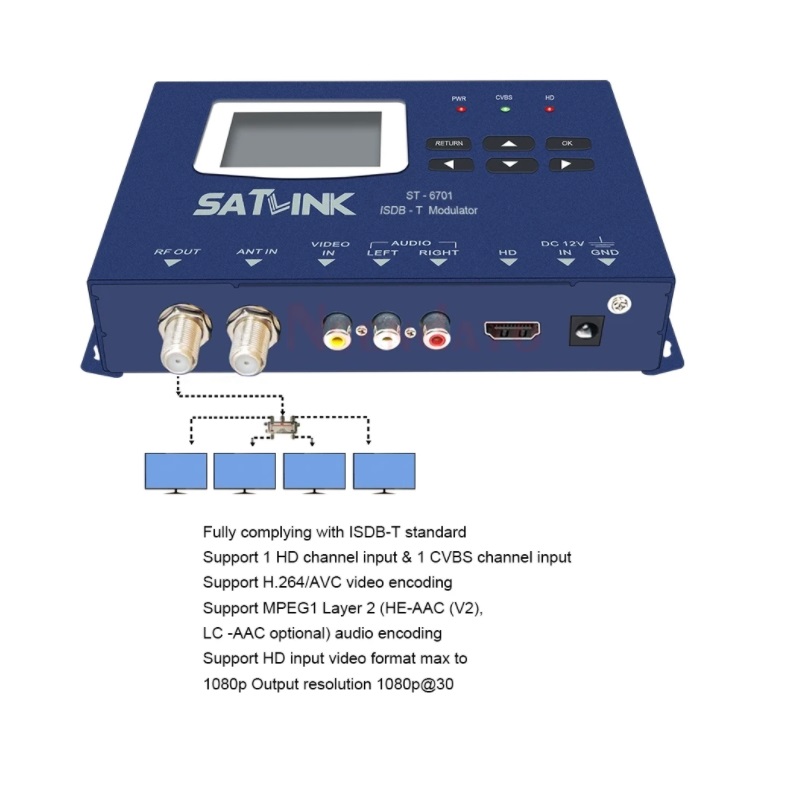

Fully complying with ISDB-T standard
.Support 1 HD channel input &1cvBS channel input
·Support H.264/AVC video encoding
.Support MPEG1 Layer 2 (HE-AAC(V2).LC -AAC optional) audio encoding
.Support HD input video format max to 1080p Output resolution 1080p@30
.Support adding AES scramble signal

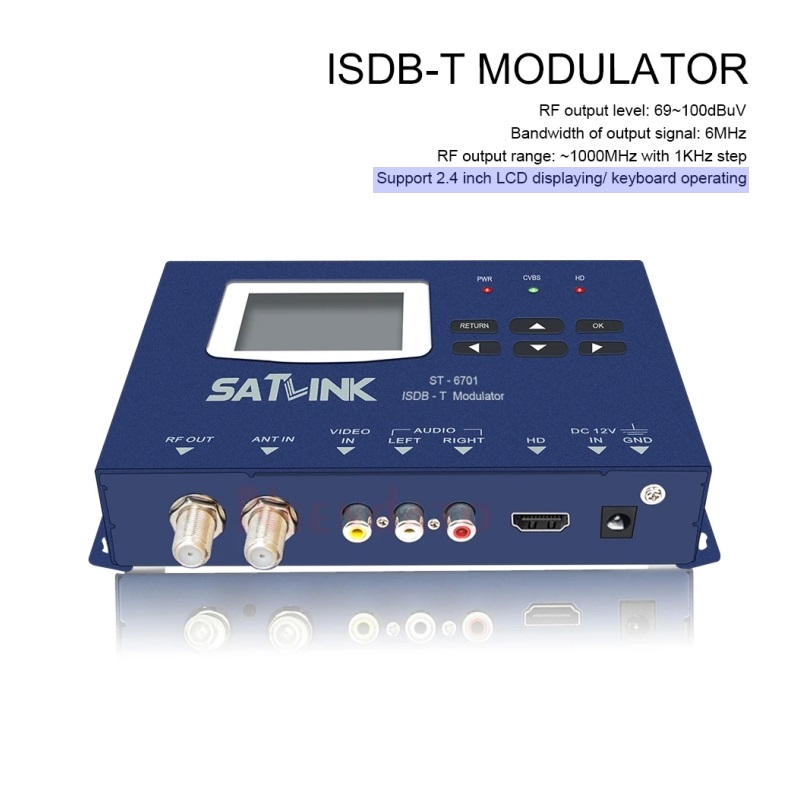

.Bandwidth of output signal:6MHz
·RF output range: 100~860MHz with 1KHz step
.RF output level:69~100dBuV
.Support 2.4 inch LCD displaying/ keyboard operating
.Upgrade software byPC
