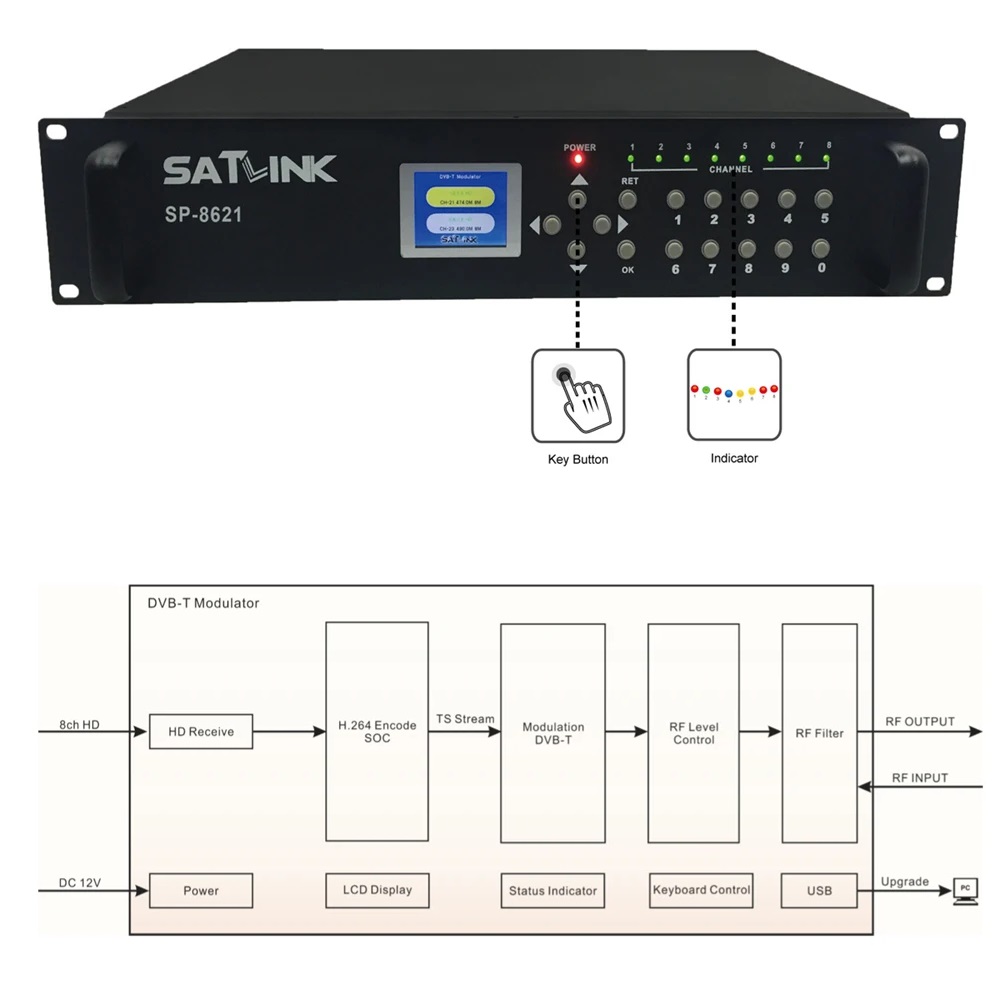

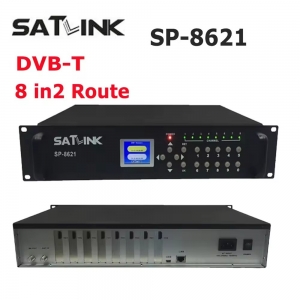

SP-8621 DVB-T modulator is developed to adapt terrestrial digital television.It's mainly applied in home entertainmentsurveillance controlhotel Digital Signage shops etc.And it is integrating MPEG-4AVC/H.264 encoding and modulating to convert audio/video signalsinto DVB-T RF out

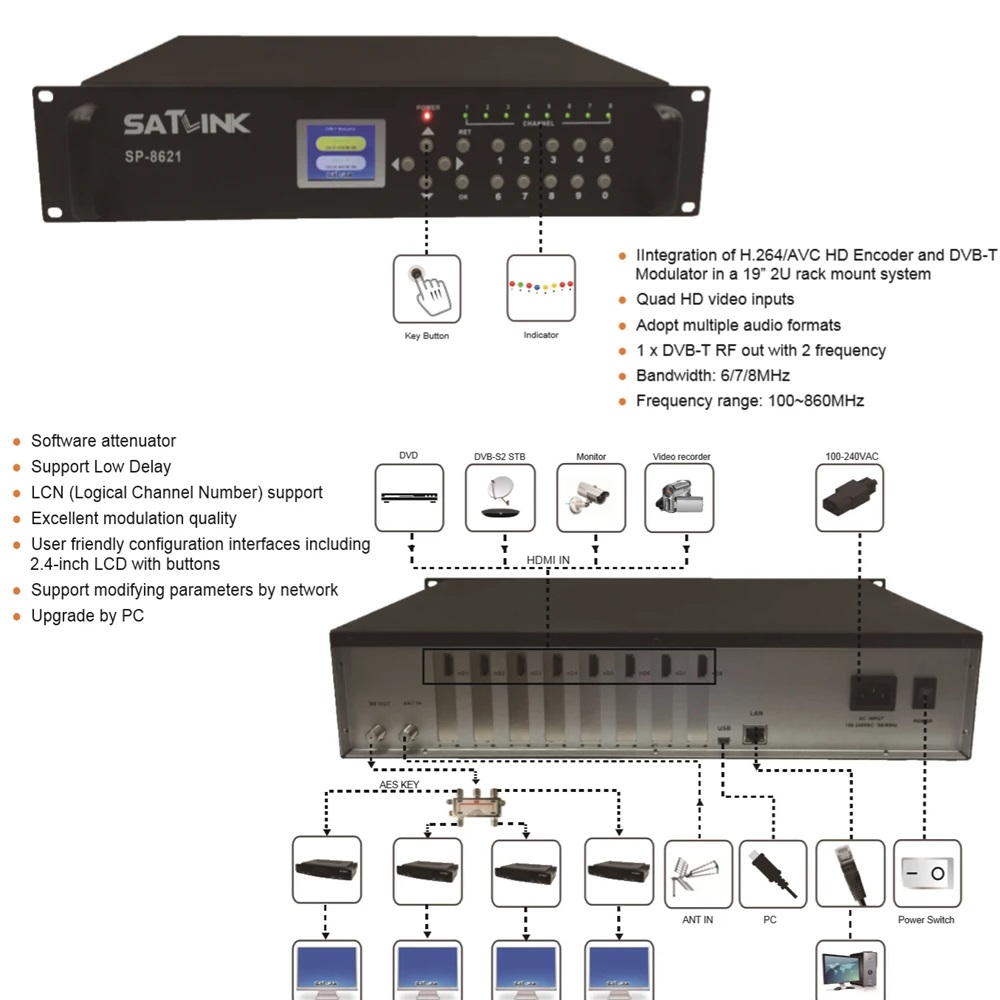

·lIntegration of H.264/AVC HD Encoder and DVB-T Modulator in a 19" 2U rack mount system Software attenuator
·Quad HD video inputs
·Support Low Delay
·Adopt multiple audio formats
·LCN(Logical Channel Number)support
·1x DVB-T RF out with 2 frequency
.Excellent modulation quality
Bandwidth:6/7/8MHz
.User friendly confiquration interfaces including2.4-inch LD with buttons
·Frequencyrange:100~860MHz
.Support modifying parameters by network
.Upgrade by PC

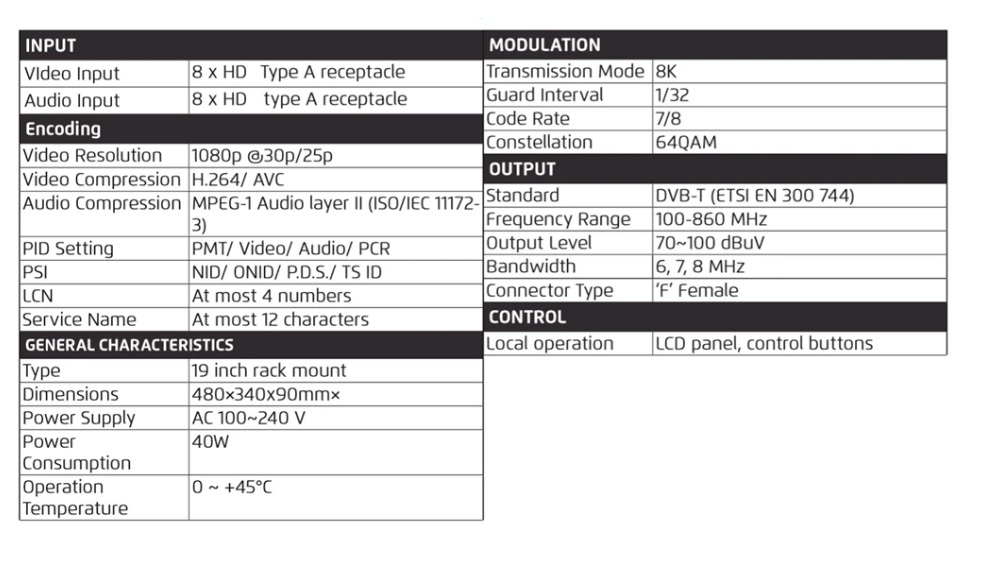

Video Resolu INPUT
Video Input：8 x HD Type A receptacle
Audio Input:8xHDtype A receptacle
ENCODING
tion:1080p @30p/25p
Video Compression:H.264/AVC
Audio Compression:MPEG-1Audio laverI (ISO/IEC 11172-3)
PID Setting:PMT/ Video/ Audio/PCR
PSI:NID/ONID/P.D.S/TSID
LCN:At most 4 numbers
Service Name:At most 12 characters
GENERALCHARACTERISTICS
Type 19:inch rack mount
Dimensions:480x340x90mm
Power Supply:AC 100~240 V
Power Consumption:40W
Operation Temperature:0 ~+45℃
MODULATION
Transmission Mode:8K
Guard Interval:1/32
Code Rate:7/8
Constellation:64QAM
OUTPUT
Standard:DVB-T(ETSI EN 300 744)
Frequency Range:100-860MHz
Output Level:70~100 dBuV
Bandwidth:6,7,8 MHz
Connector Type:'F Female
CONTROL
Local operation:LCD panelcontrol buttons
