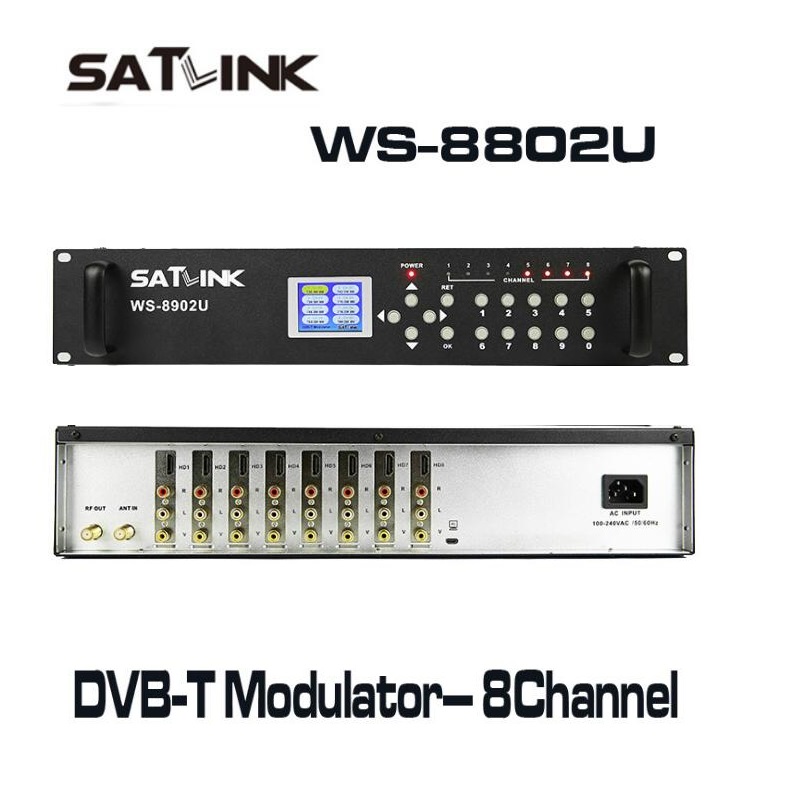

SATLINK WS-8902 DVB-T 8 Route modulator MPEG4 analogue A/V source to DVB-T channel SATLINK WS 8902U WS-6980 7990


SATLINK WS-8902 DVB-T 8 Route modulator MPEG4 analogue A/V source to DVB-T channel SATLINK WS 8902U WS-6980 7990


SATLINK WS-8902 DVB-T 8 Route modulator MPEG4 analogue A/V source to DVB-T channel SATLINK WS 8902U WS-6980 7990

ST-8902U DVB-T modulator is well designed to multiplex video signals from 8 different signals into 8 channelsRF out.ST-8902U is a compact and convenient device used for home/hotel entertainment, surveillance contiol, digital sinage, multi-dwelling unit,co

  • 商品编号：G68591C6398308
  • 商品重量：2400.000 克(g)
  • 货　　号：G68591C6398308
  • 市场价： ￥8280.00
  • 销售价： ￥6900.00
  • 节省： ￥1380.00
购买数量：
  (库存100)
app hook

Introduction:

The machine is a composite video input standard definition DVB-T 8 route modulator which provides COFDM RF signal in range of 50-860MHz.

It consists of A/D, Coding, Modulation, Frequency conversion which provides bandwidth of 6/7/8MHz to select.

It is designed to achieve CVBS and input, and it can also supports standard H.264 encoding.
It is an excellent choice to transport video/audio signals from TV satellite receivers, surveillance camera or video/media players to a LCD TV or set-top box.
It can be used in series with other modulator so the number of channels in the coaxial cable no the SMATV system can be increased as desired.

Features:

  •   High level of integration, high-performance, Full-featured, integrated design
  •   8 route input modulator that converts AV source to a DVB-T channel
  •   Standard COFDM modulation and H.264 encoding
  •   Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p
  •   Bandwidth: 6/7/8MHz
  •   Frequency range: 50~860MHz
  •   Continuously adjustable RF signal output level range 70dBuV from 100dBuV, step 1dBuV
  •   2.4-inch color LCD display
  •   Small size and light weight
  •   Carriers 2K and 8K
  •   User friendly setup and control
