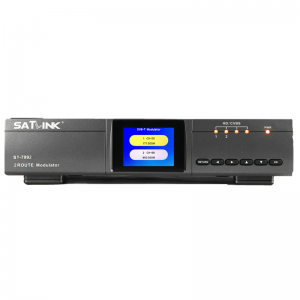

Satlink ST-7992 DVB-T modulator COFDM modulation H.264


Satlink ST-7992 DVB-T modulator COFDM modulation H.264


Satlink ST-7992 DVB-T modulator COFDM modulation H.264

WS-7992 DVB-T modulator is developed to adapt terrestrial digital television. It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-4 AVC/H.264encoding and modulating to convert audio

  • 商品编号：G68592150BE9C3
  • 商品重量：2000.000 克(g)
  • 货　　号：G68592150BE9C3
  • 市场价： ￥2040.00
  • 销售价： ￥1700.00
  • 节省： ￥340.00
购买数量：
  (库存100)
app hook

Satlink ST-7992 DVB-T modulator COFDM modulation H.264调制器

1. High level of integration, high-performance, Full-featured, integrated design

2. 2 route input modulator that converts analogue A/V source to a DVB-T channel

3. Standard COFDM modulation and H.264 encoding

4. Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p

5. Bandwidth: 6/7/8MHz

6. Frequency range: 50~860MHz

7. Continuously adjustable RF signal output level range 70dBuV from 100dBuV, step 1dBuV

8. 2.4-inch color LCD display

9. Small size and light weight

10. Carriers 2K and 8K

11. User friendly setup and control

12. Compact and wall mountable

High level of integration, high-performance, Full-featured, integrated design

• 2 HD /2 AV  inputs  modulator that converts  source to a DVB-T over RF channel

• Standard COFDM modulation and H.264 encoding

• Support High-Bandwidth Digital Content Protection /HDCP

• Bandwidth: 6/7/8MHz

• Frequency range: 50~860MHz

• Continuously adjustable RF signal output level range 70dBuV from 100dBuV,step 1dBuV

• 2.4-inch color LCD display

• Small size and light weight

• Carriers 2K and 8K

• User friendly setup and control

1 x SATLINK WS-7992

1 x Power Supply

1 x User Manual
