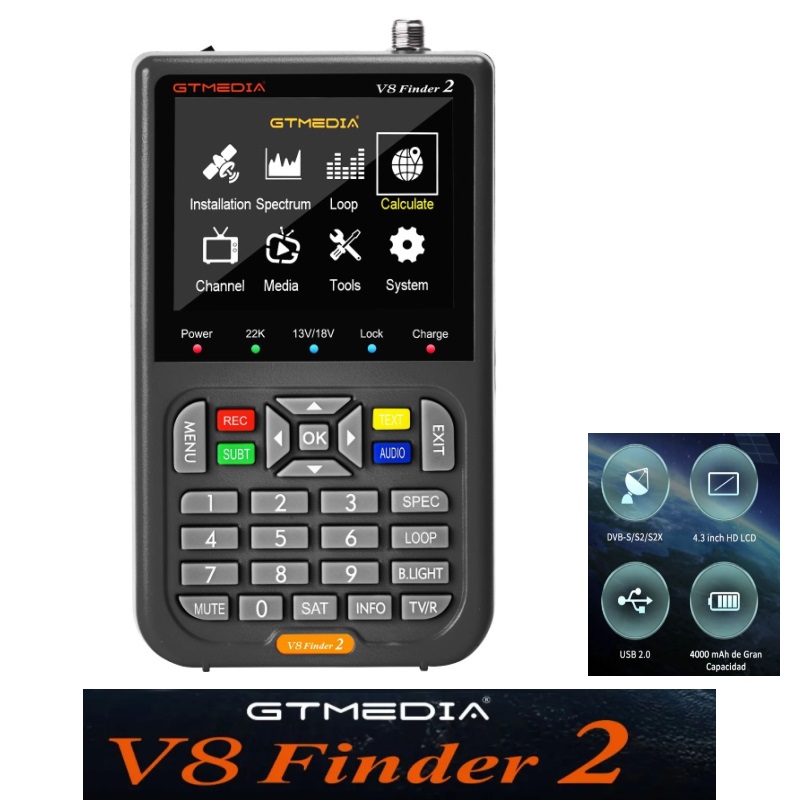

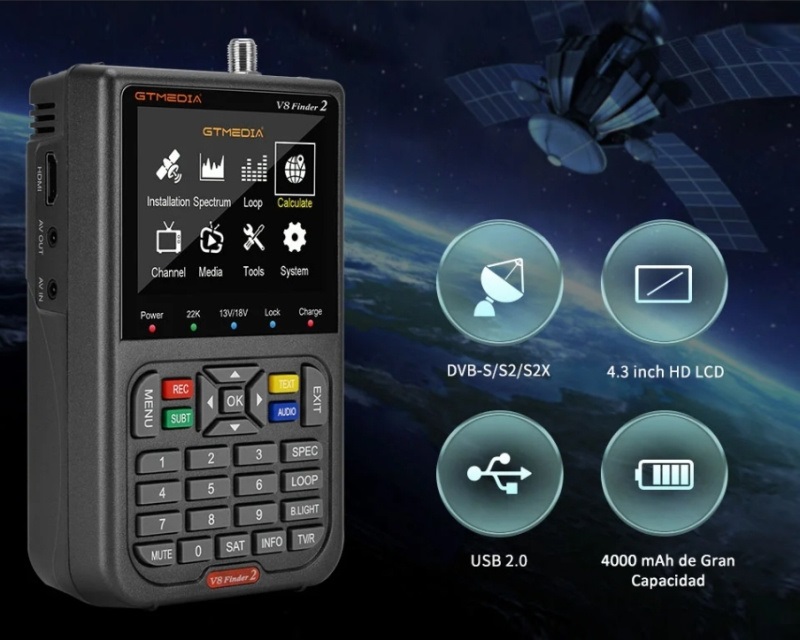

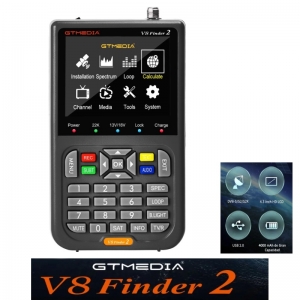

GTMEDIA V8 Finder2 is a DVB-S/S2 and MPEG-2/4 H.264(8 Bit) compliant handheld satellite meter. With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service to residential homes or multi-dwelling units.

Key Features

● 3.5 Inch High Definition LCD Screen,

● Fully DVB-S2X/S2/S, MPEG-2/MPEG-4 compliant

● Support H.264 (8 Bit) Hardware decoding

● Digital measuring device for signal strength and quality.Supports presetting all satellite information

● Support Loop Search

● Spectrum analyzer

● Supports scan of Auto, Blind, Manual or NIT

● Sound for Locking Signal

● Auto Calculate Angle of AZ,EL

● Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone

● Speaker Integrated

Specifications

TRANSMISSION STANDARDS

DVB-S2X/S2/S,MPEG-2,MPEG-4,H.264

Supports softcam: Fastest BISS auto roll, PowerVu auto roll

Support CCM,VCM, ACM, multi-stream, T2-MI, Single/Multi-PLP

SATELLITE INPUT/DEMODULATION

Connector Type F Type

Input Frequency 950 to 2150 MHz

Signal Input Level ‐65 to ‐25 dBm

Band Switch Control 22KHz

LNB Supply 13V/18V, Max 350mA

Demodulation Type "DVB-S2 QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,

DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK"

Symbol Rate 2<Rs<45Mband(SCPC/MCPC)

LCD FEATURES

LCD Type 3.5”high-resolution digital display LCD
